Blackbody Radiation Sources & Infrared Calibration Sources
Cavity and extended-area blackbody simulators for MWIR and LWIR radiometric calibration, infrared detector characterization, focal plane array (FPA) testing, and IR system integration. All models emit calibrated Planck (thermal) radiation and are available with NIST-traceable calibration. Typical applications include NETD measurement, D* (specific detectivity) characterization, non-uniformity correction (NUC) of focal plane arrays, FTIR spectroscopy reference sources, and IR target signature simulation.
Cavity Sources
IR-574
Cavity Blackbody Source
Cavity Diameter2.25"
Temp. Range50°C – 1200°C
IR-563
Cavity Blackbody Source
Cavity Diameter1.0"
Temp. Range50°C – 1050°C
IR-564
Cavity Blackbody Source
Cavity Diameter1.0"
Temp. Range50°C – 1200°C

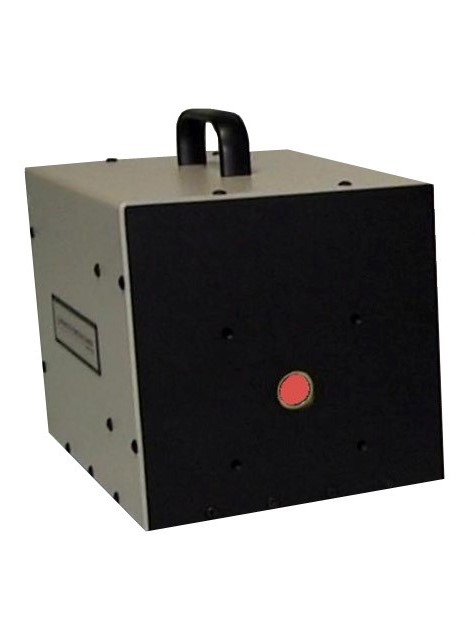

IR-704
Cavity Blackbody Source
Cavity Diameter0.25"
Temp. Range50°C – 1050°C
FeatureDual Filter Wheel
IR-518
Cavity Blackbody Source
Cavity Diameter0.40"
Temp. Range50°C – 1050°C
IR-519
Cavity Blackbody Source
Cavity Diameter0.40"
Temp. Range50°C – 1200°C
IR-508
Cavity Blackbody Source
Cavity Diameter0.25"
Temp. Range50°C – 1050°C
IR-565
Cavity Blackbody Source
Cavity Diameter1.0"
Temp. Range50°C – 1200°C
Extended Area Sources
IR-140
Extended Area Blackbody
Active Area12" × 12"
Temp. RangeAmbient – 230°C
IR-160
Extended Area Blackbody
Active Area12" × 12"
Temp. RangeAmbient – 350°C
IR-150
Extended Area Blackbody
Active Area12" × 12"
Temp. RangeAmbient – 500°C
IR-2100 / IR-2101
TE-Cooled Extended Area Blackbody
Active Area2" × 2"
Temp. Range−5°C – 145°C / −30°C – 75°C
CoolingThermoelectric (TE)
IR-2103
TE-Cooled Extended Area Blackbody
Active Area3" × 3"
Temp. Range−5°C – 145°C
CoolingThermoelectric (TE)
IR-2106
TE-Cooled Extended Area Blackbody
Active Area6" × 6"
Temp. Range5°C – 150°C
CoolingThermoelectric (TE)
