Infrared Detector Preamplifiers & Transimpedance Amplifiers (TIA)
Ultra-low-noise transimpedance amplifiers for photovoltaic (PV) and photoconductive (PC) infrared detectors across MWIR and LWIR bands. Optimized for MCT (HgCdTe), InSb, InGaAs, PbSe, and pyroelectric detectors. Room-temperature and cryogenic preamplifier models available, compatible with TE-cooled and liquid nitrogen-cooled detector assemblies.
Single-Element Preamplifiers
| Model | Description | Detector Type | Bandwidth | Gain Range | |
|---|---|---|---|---|---|
| MCT-1000 | PC HgCdTe Preamplifier | PC HgCdTe | 1.5 Hz – 150 kHz | 50 – 1000 | View Details |
| MCT-1000DC | PC HgCdTe Preamplifier (DC-Coupled) | PC HgCdTe | DC – 150 kHz | 50 – 1000 | View Details |
| MCT-1000H | PC HgCdTe High-Gain Preamplifier | PC HgCdTe | 1.5 Hz – 150 kHz | 200 – 4000 | View Details |
| MCT-1000HS | PC HgCdTe High-Speed Preamplifier | PC HgCdTe | 500 Hz – 1.0 MHz | 50 – 1000 | View Details |
| PVMCT-1000 | PV HgCdTe Preamplifier | PV HgCdTe | 1.5 Hz – 150 kHz | 5 – 100 | View Details |
| INSB-1000 | PV InSb Preamplifier | PV InSb | 1.5 Hz – 200 kHz | 5 – 100 | View Details |
| INSB-1000DC | PV InSb Preamplifier (DC-Coupled) | PV InSb | DC – 200 kHz | 5 – 100 | View Details |
| INSB-1000HS (2 mm) | PV InSb High-Speed Preamplifier, 2 mm detector | PV InSb | 500 Hz – 1.0 MHz | 0.5 – 10 | View Details |
| INSB-1000HS (1 mm) | PV InSb High-Speed Preamplifier, 1 mm detector | PV InSb | 500 Hz – 1.0 MHz | 2.5 – 30 | View Details |
| PYRO-1000 | Pyroelectric Detector Preamplifier | DTGS and LiTaO3 | 1.5 Hz – 10 kHz | 50 – 1000 | View Details |
| PB-1000 | PbS / PbSe Preamplifier | PbS / PbSe | 1.5 Hz – 50 kHz | 2 – 200 | View Details |
| INGAAS-1000 | InGaAs Preamplifier | InGaAs | 1.5 Hz – 50 kHz | 5 – 100 | View Details |
| VA-1000 | Voltage Amplifier | Any | 10 Hz – 500 Hz | 100 – 3000 | View Details |
| MCT/INSB-1000 | Two-Color Detector Preamplifier | MCT & InSb | — | — | View Details |
Array Detector Preamplifiers
Multi-channel versions of the single-element MCT-1000 preamplifier, packaged for small and large array detectors. Per-element bias and gain adjustment compensates for responsivity variations across the array. 50 Ω output drives long cables and PC-based A/D boards directly.
MCT-4000
4-Element Array Preamplifier
MCT-1600
16-Element Array Preamplifier

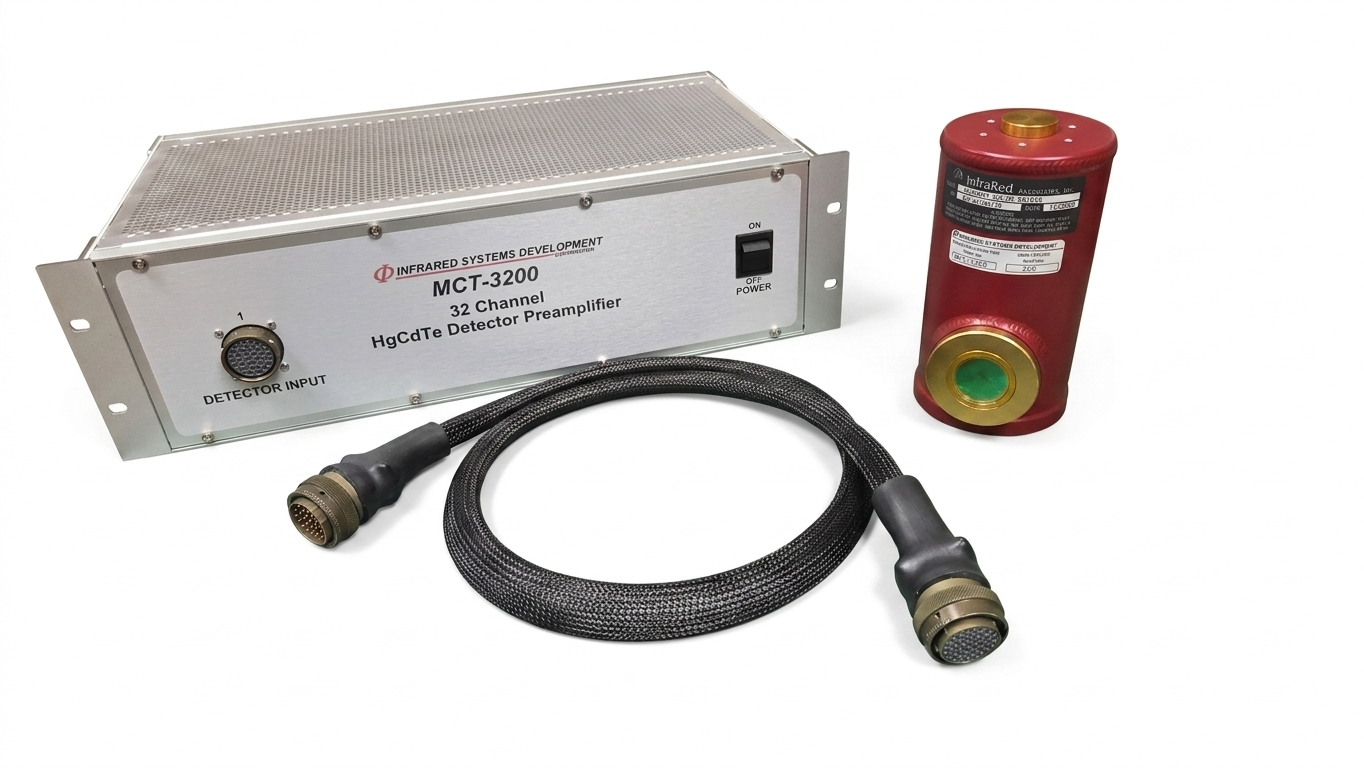

MCT-3200
32-Element Array Preamplifier
MCT-6400
64-Element Array Preamplifier
Custom Configurations Available
All preamplifier models can be customized for your specific detector type, bandwidth, and gain requirements. Contact our engineers to discuss your application.
